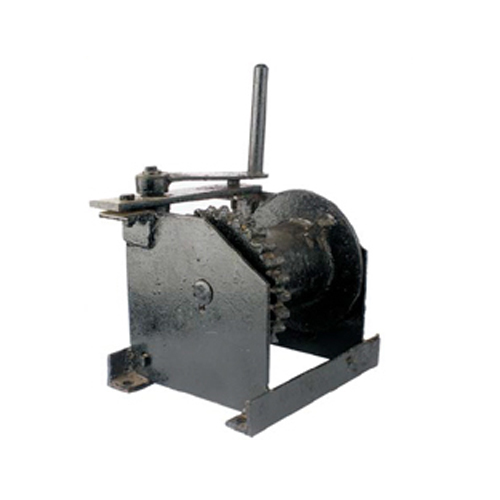

Crab Winch
We are a renowned trader and supplier of supreme quality Crab Winch that is globally demanded to support handling equipments. This winch is designed and manufactured as per the latest industrial developments by our reliable vendors utilizing fine grade raw material. We offer this Crab Winch to the clients in various technical specifications as per their specific requirements. Clients can avail this winch at affordable costs.
Features:
Durable finish standards
Rugged design
Corrosion resistance
Optimum strength
To Lift Direct | Drum DL | DrumL ength | Thick ness | Main Shaft Dia mm | No Of Driving Shaft | Dia Of Driving Shaft | Dia Of The ROD | No. Of The ROD | Height | Width | Purchase | Dia Main | Flange From Dia |
From Barrel | inches | inches | Of Side Plate | Penion | |||||||||
tons | mm | inches | inches | inches | inches | inches | |||||||
1 | 5½ | 16 | 6 | 32 | 2 | 1.125 | 16 | 4 | 25 | 21 | Double | 17 ¼ | 9 |
1.5 | 5 ½ | 18 ½ | 6 | 32 | 2 | 1 ¼ | 16 | 4 | 29 | 23 | Double | 21 ¼ | 9 |
2 | 6 .625 | 22 | 8 | 40 | 2 | 1 ? | 20 | 4 | 35 | 27 | Double | 26 ¼ | 11 |
3 | 6.625 | 24 | 8 | 45 | 2 | 1 ½ | 22 | 4 | 39 | 30 | Double | 30 | 11 |
5 | 8.625 | 30 | 10 | 50 | 2 | 1 ¾ | 25 | 4 | 48 | 34 | Double | 35.625 | 13 |
7.5 | 8 .625 | 30 | 10 | 50 | 3 | 1 ¾ | 25 | 4 | 48 | 34 | Double | 35.625 | 13 |
10 | 8 .625 | 34 | 11 | 65 | 3 | 1.875 | 32 | 4 | 48 | 35 | Double | 34 | 16 |
