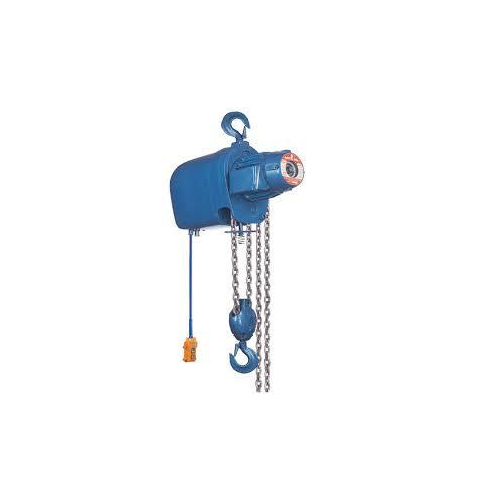

Electric Chain Hoists

Electric Chain Hoists
Electric Chain Hoists
Product Code : 05
Product Description

We are acknowledged as the foremost manufacturer, exporter and supplier of a superior quality range of Electric Chain Hoists. These hoists are manufactured using the finest quality metal and modern technology at our highly advanced production unit. Our offered hoists are widely used for performing different types of electrical work as per the need of the clients. Apart from this, the offered Electric Chain Hoists are made available in various technical specifications.

Features:

  • Highly functional

  • Safe to use

  • Weather resistance

  • Durability


FRAME:

Made from MS Rolled Steel Plates.

CHAINS:

Load chains are of Alloy Steel Grade 80 to IS: 6216. For 0.5 Te is of Higher Tensile Steel Grade 40 to IS: 3109 (Part II).

HOOKS:

Forged hook as per IS: 8610

GEARS:

Special alloy steel case hardened gears (spur & helical type) are enclosed in dust proof gear box.

LOAD WHEEL :

Made from Malleable Iron / Spheroidal Graphite Iron.

MOTOR :

Conical rotor motor with built in brake is used up to 2Te capacity. Above 2Te, hoist duty squirrel cage motor with ACEM disc brake is used.

CHAIN GUIDES :

Steel chain guide roller provided

HOIST LIMIT SWITCH :

Limit switch provided for both over hoisting & over lowering.

PENDANT PUSH BUTTON :

Provided with control voltage of 24V as standard.

CERTIFICATION :

One year guarantee from the date of installation (or) 18 months from the date of supply, whichever is earlier.

IMPROVEMENTS:

Our Engineering Department continuously works on design improvements and hence, we reserve the right of effecting any change without notice.

Technical Specifications

Capacity (Safe Working load)
Tonnes
0.5
1.0
2.0
3.0
5.0
Number of falls
--
1
1
2
1
2
Test Load
Tonnes
0.625
1.25
2.50
3.125
6.25
Hoisting Speed
m / min
4.50
4.50
2.25
5.20
2.60
Hoist Motor Power
hp
0.75
1.50
1.50
5.00
5.00
Maximum Height of Lift
m
20
20
10
10
10
Cross Travel Speed
m / min
18.00
18.00
18.00
18.00
15.00
Cross Travel Motor Power
hp
0.25
0.25
0.25
0.50
0.50
Dimensions A - Hook Suspension
mm
475
520
740
950
1170
A - Electric Trolley
mm 575
600
820
1045
1270
A - Geared Trolley
mm 550
580
800
1025
1250
B
mm 115
115
130
265
265
C
mm 115
115
125
170
170
E
mm 650
700
550
960
960
F
mm 315
315
295
460
460
J - For Electric Trolley
mm 330
330
330
330
350
J - For Geared Trolley Trolley
mm 175
175
200
300
300
Electric Trolley Track Width Range-I
mm 100-150
100-150
100-150
100-150
125-150
Track width Range-II
mm 180-210
180-210
180-210
180-210
180-210
Minimum clear depth of track
mm 200
200
200
200
250
Minimum Radium of Curvature
m 2.4
2.4
2.4
2.4
3.0
Geared Trolley Track width Range-I
mm
80-110
100-150
100-150
100-150
125-150
Track width Range-II
mm
125-180
180-210
180-210
180-210
180-210
Minimum clear depth of track
mm
150
200
200
200
250
Minimum Radius of Curvature
m
1.5
1.5
2.0
2.0
2.5
Weight for 3M Lift (Approx)
Hoist - Hook Suspension
Kg
55
63
70
385
395
Hoist with Power Trolley
Kg
100
108
115
445
470
Hoist with Geared Trolley
Kg
78
86
107
427
460
Weight per Metre Additional Lift
Kg
1.0
1.0
2.0
3.3
6.6
