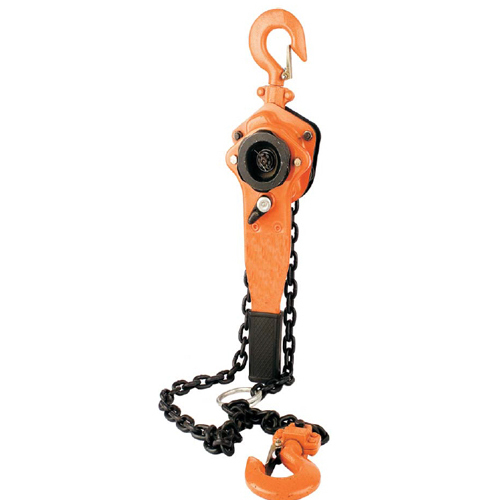

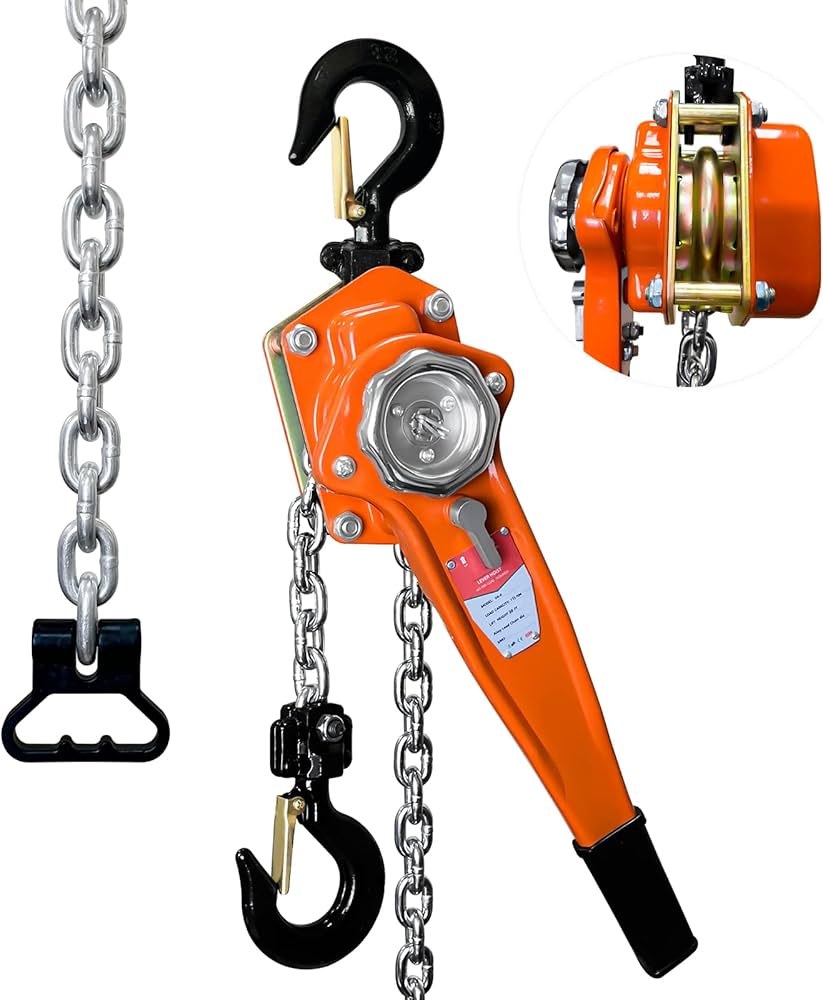

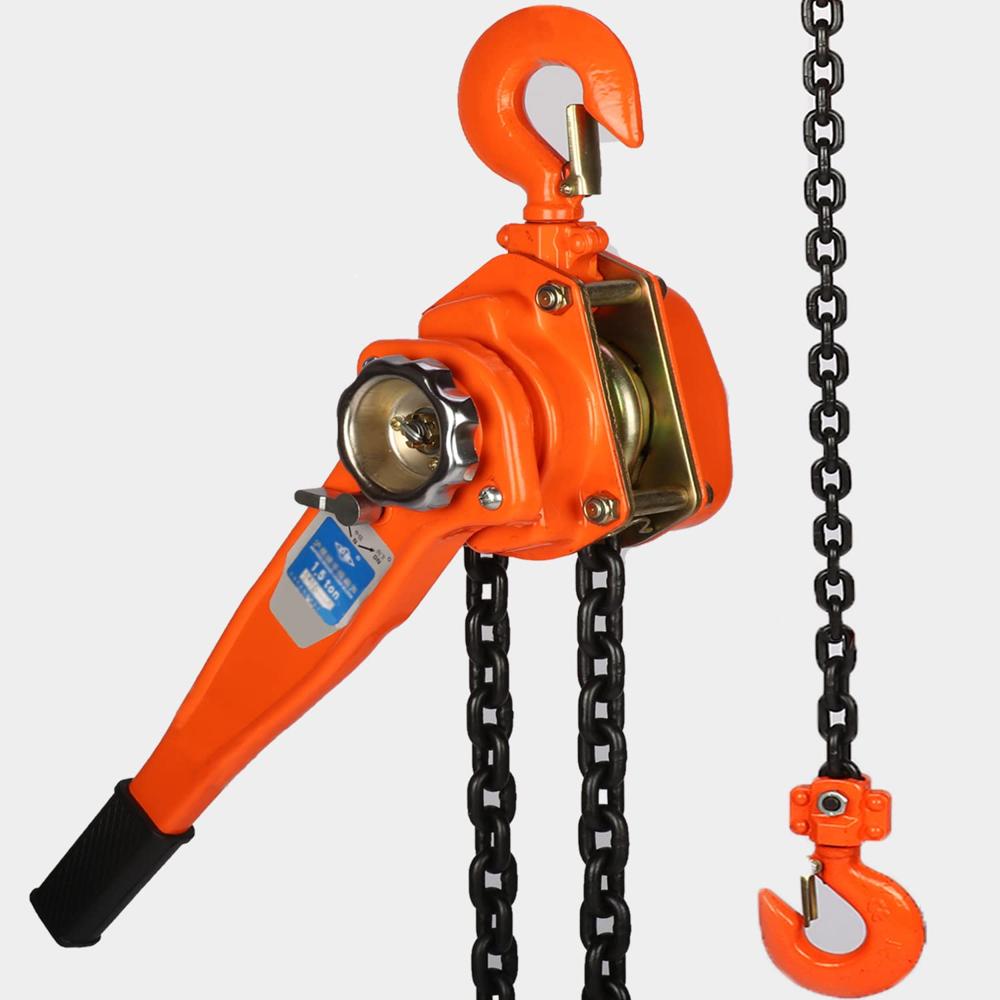

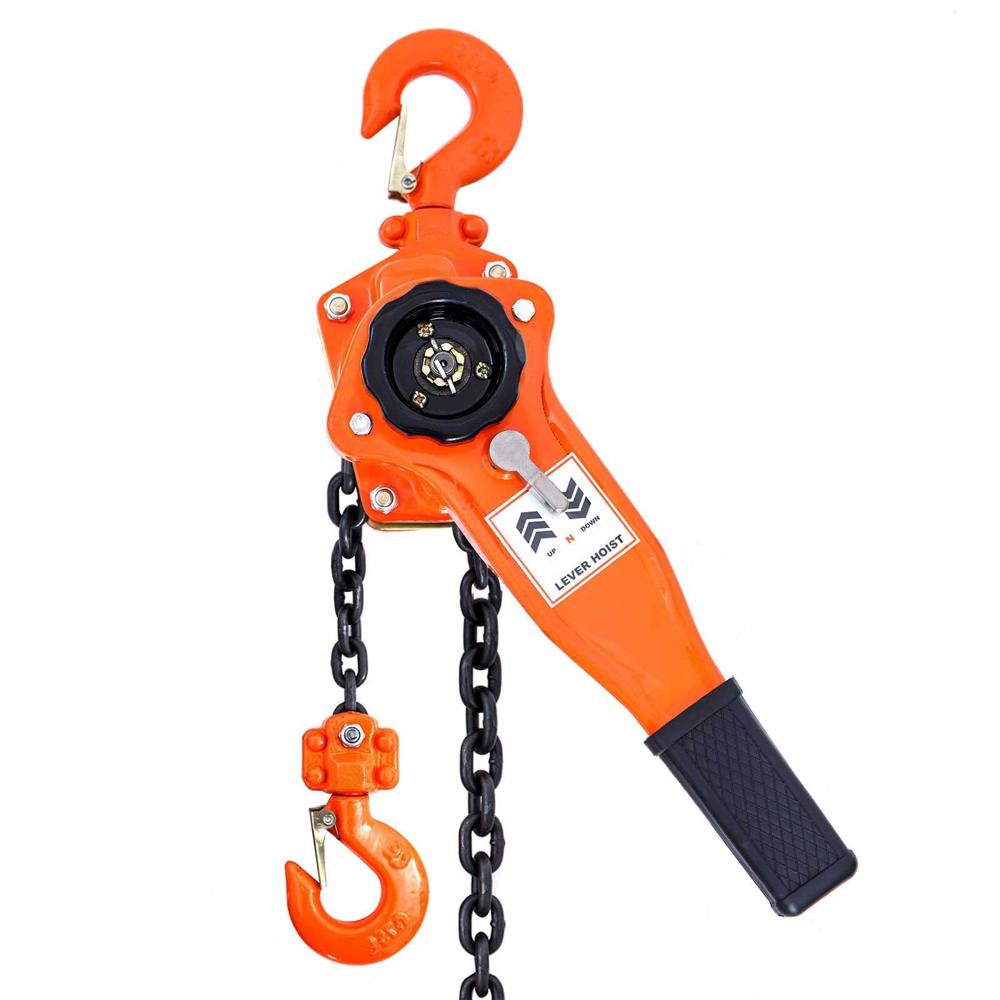

Chain Lever Hoist
Being a client centric organization we present an exclusive array of Chain Lever Hoists. Which is robust in construction, high tensile strength and reliable in operation. That are made up of top quality raw materials. Which is designed to perfection. Our hoists are high durable, perfect finish and accurate dimension. Due to their high performance and efficiency it is widely appreciated by our clients. We offer these with industry leading prices.ï
1) What is a chain lever hoist?
A chain lever hoist is a type of lifting device that uses a chain and lever to lift heavy objects.
2) How does a chain lever hoist work?
A chain lever hoist works by using a chain to lift a load. The chain is attached to a lever, which is used to lift the load. The lever is attached to a pulley, which is used to move the load up and down.
3) What are the benefits of using a chain lever hoist?
A chain lever hoist is a type of lifting device that uses a chain and lever to lift heavy objects. This type of hoist is often used in construction and industrial settings because it is durable and can lift very heavy objects.
4) How can a chain lever hoist be used?
A chain lever hoist can be used for a variety of purposes, including lifting, pulling, and moving heavy objects.ï
Model | ï | CL 3/4 | CL 1-1/2 | CL 3 | CL 6 |
Capacity | ton | 0.75 | 1.5 | 3 | 6 |
Lift | m | 1.5 | 1.5 | 1.5 | 1.5 |
Test load | ton | 1.125 | 2.25 | 4.5 | 7.5 |
Min. distance between hooks: | mm | 303 | 365 | 485 | 600 |
Pull on lever to lift full load | kgf | 20 | 21 | 33 | 35 |
No. of load chain falls | mm | 1 | 1 | 1 | 2 |
Diameter of load chain | mm | 6 | 7 | 10 | 10 |
Length of lever handle : D | mm | 290 | 410 | 410 | 410 |
Dimensio ns mm | A | 139 | 174 | 200 | 200 |
B | 84 | 108 | 115 | 115 | |
C | 153 | 160 | 185 | 230 | |
Net weight | kg | 7 | 11 | 20 | 30 |
