Product Code : 153
Price And Quantity
- Minimum Order Quantity
- 1 Piece
- 50-100 Kilograms (kg)
- Stainless Steel
- Surface Treatment

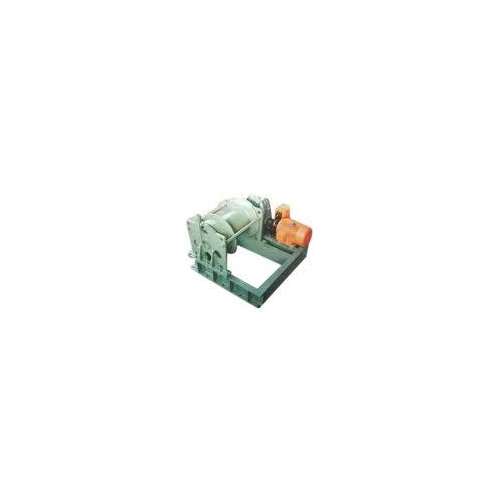

Ours is a pioneering company, engaged in trading , supplying and distributing a remarkable range of Power Winches. Offered machines run on electricity that makes these suitable to reduce human efforts. Robustly manufactured with high-grade components, these winches are widely used in various material handling applications owing to their excellent performance, high efficacy, low maintenance, prolonged service life and least power consumption. These Power Winches are properly tested by our quality controllers on different parameters in order to ensure their flawlessness.

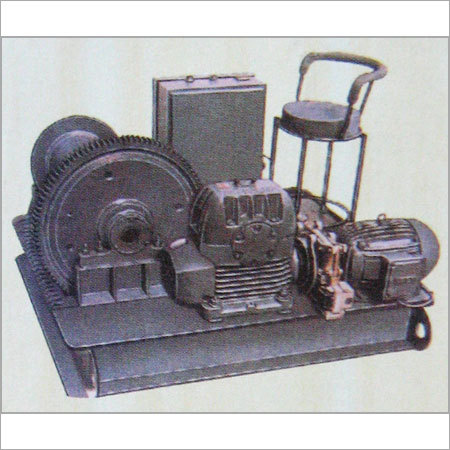

- Electric Wire Rope Winch Machine :- Power driven winch machine are designed as per IS - 9507 -1979 and are suitable for heavy-duty applications.
- Generally, winches with right hand operation are manufactured, however, the same can supply with other side operation also as per requirement.
- Base frame :- Fabricated with rocked steel sections/plates properly ribbed, floored with chequered plate for working area, lifting lugs, anchorimg holes for foundation, provided.
- Reducer :- 1st stage reduction with self made worm reduction gear box or of reputed make and other reduction with open spur gears and pinions.
- Rope drum :- Steel fabricated drum duly machined, with flanges at both ends, winding capacity 100-meter pf wire rope. Drums with larger windings capacity cn also available.
- Motor :- High starting torque, class 'B' insulation, 150 starts/Hr 415v, 50 hz, A.C. induction squirrel cage/slipring motors conforming to IS - 325 of reputed make like NGEF/SIMENS etc.
- Control and control panel: The winch is operated by push button station/controller at 110v fixed on machine. The control equipement like triple pole reversing contractors, H.R.C. fuses, pilot lamp etc of reputed make like EE/BCH/L&T.
- Brake :- Electromagnetic/Elector hydraulic thruster, double shoe type brake and /or hand operated brake provided as per requirement.
- Test :-All machines are tested at 25% overloaded tested.
- Warrantee :- 12 months warrantee from the date of delivery against any manufacturing defect at factory basis.
- Improvement :- We reserve the right of effecting any technical improvement without any notice.
- Payment Terms
- Cash in Advance (CID), Cash Advance (CA)
- Supply Ability
- 100-200 Piece Per Month
- Delivery Time
- 1-2 Days
- Main Export Market(s)
- Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
- Main Domestic Market
- All India
