Product Description

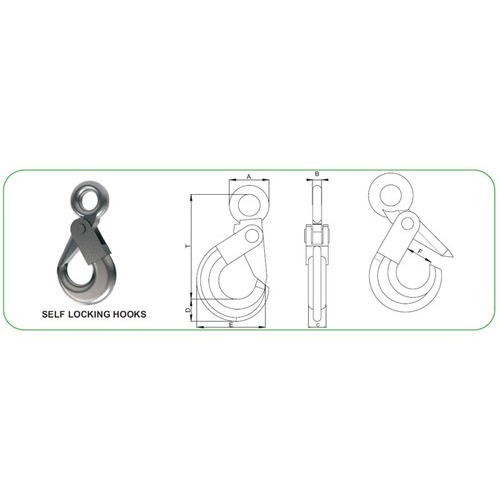

Swivel Hook Self Locking Type
| LOAD CAPACITY
IN Kg | NOMINAL SIZEA | DIMENSION IN mm | WEIGHT
IN Kg | | | A | B | C | D | E | L | O | R | S | T | | 1250 | 1.25 | 50.8 | 23.8 | 31.8 | 73 | 23.9 | 141 | 22.3 | 114 | 9.53 | 20.6 | 0.34 | | 1600 | 1.6 | 63.5 | 33.3 | 38.1 | 81 | 26.2 | 168 | 24.6 | 134 | 12.7 | 20.6 | 0.57 | | 2500 | 2.5 | 76.2 | 41.3 | 44.5 | 92 | 27 | 194 | 25.4 | 153 | 15.9 | 21.4 | 1.02 | | 3200 | 3.2 | 76.2 | 39.7 | 44.5 | 104 | 31 | 206 | 28.6 | 162 | 15.9 | 30.2 | 1.17 | | 5400 | 5.4 | 88.9 | 44.5 | 51 | 125 | 38.1 | 244 | 34.1 | 188 | 19.1 | 34.9 | 2.22 | | 8000 | 8 | 114.3 | 59 | 64 | 165 | 47.6 | 315 | 42.9 | 244 | 25.4 | 45.2 | 4.67 | | 11500 | 11.5 | 127 | 60 | 70 | 192 | 57 | 368 | 52 | 283 | 28.6 | 54 | 7.37 | | 16000 | 16 | 142.9 | 68 | 79 | 221 | 64 | 403 | 57 | 306 | 31.8 | 65 | 10.6 | | 22000 | 22 | 177.8 | 106 | 102 | 279 | 86 | 535 | 76 | 421 | 38.1 | 73 | 22.6 | |
| |
| * Ultimate Load is 4 times the Working Load Limit based on Grade 8 Chain. |
| |
| Features |
| 1) | Positive Lock Latch is Self-Locking when hook is loaded. | | 2) | Forged Alloy Steel- Quenched and Tempered. | | 3) | Rated for both Wire Rope and Grade 8 Chain. | | 4) | Meets ASTM A-952-96 and proposed Euronorm standards for Grade 8 chain fittings. | | 5) | Fatigue rated. | | 6) | The SHUR-LOC-hook, if properly installed and locked, can be used for personnel lifting applications and meets the intent of OSHA Rule 1926.550 (g) (4) (iv) (B). | | 7) | G-414Heavy Thimble should be used with wire rope slings. | | 8) | Individually Proof Tested at 2-1/2 times the Working Load Limit with certification. | | 9) | Trigger repair Kit available (S-4316).Consists of spring, roll pin and trigger. | | 10) | Designed to rotate under load during infrequent, noncontinuous rotation. | | 11) | "Look for the color Gold - Crosby Alloy Hooks". | |
|
